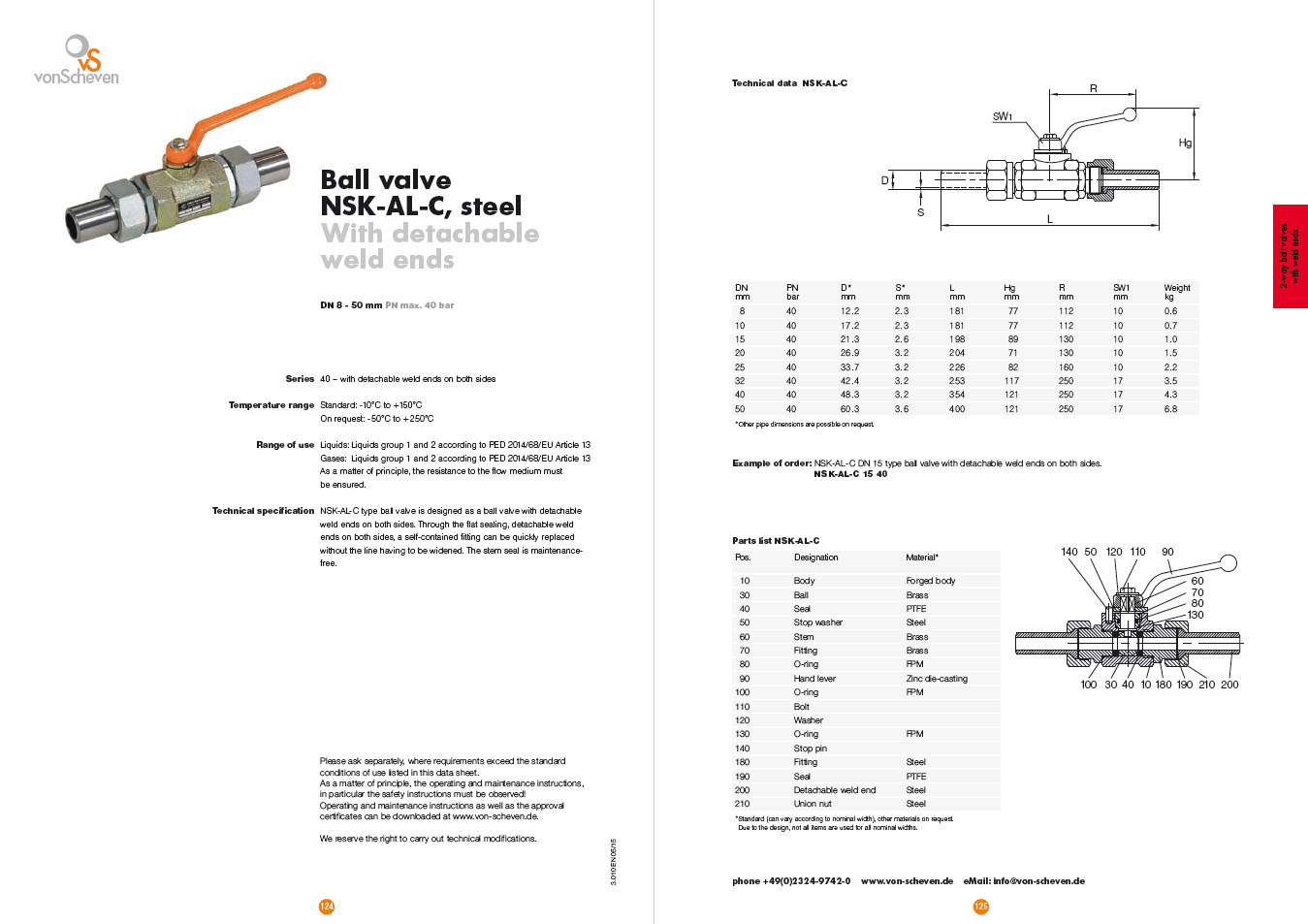

datasheet NSK-AL-C

Product-Description

Ball valve NSK-AL-C

Steel

With detachable weld ends

DN 8-50

PN max. 40

Series

40 – with detachable weld ends on both sides

Temperature range

Standard: -10°C to +150°C
On request: -50°C to +250°C

Range of use

Liquids: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
Gases: Liquids group 1 and 2 according to PED 2014/68/EU Article 13
As a matter of principle, the resistance to the flow medium must be ensured.

Technical specification

NSK-AL-C type ball valve is designed as a ball valve with detachable weld ends on both sides. Through the flat sealing, detachable weld ends on both sides, a self-contained fitting can be quickly replaced without the line having to be widened. The stem seal is maintenancefree.

Please ask separately, where requirements exceed the standard conditions of use listed in this data sheet. As a matter of principle, the operating and maintenance instructions, in particular the safety instructions must be observed! Operating and maintenance instructions as well as the approval certificates can be downloaded at www.von-scheven.de.
We reserve the right to carry out technical modifications.
